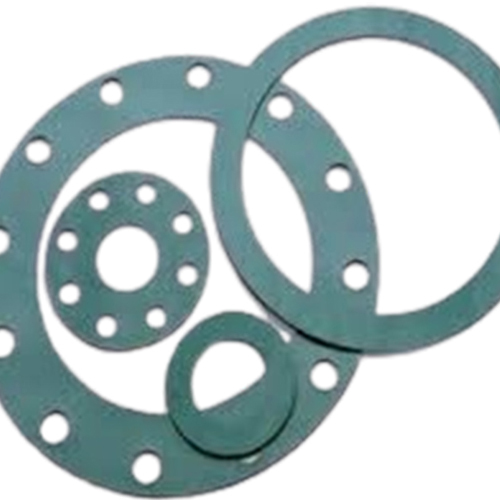

Asbestos Free Fibre Jointing Sheet
Product Details:
- Product Type Asbestos Jointing Sheets
- Type Sheets
- Shape Round
- Click to view more
X
Asbestos Free Fibre Jointing Sheet Price And Quantity
- 10 Sheet
Asbestos Free Fibre Jointing Sheet Product Specifications
- Sheets
- Round
- Asbestos Jointing Sheets
Asbestos Free Fibre Jointing Sheet Trade Information
- 1000 Sheet Per Month
- 7 Days
Product Description
Application :
- Suitable subject to chemical compatibility.
- Suitable for short term temperature fluctuation or non critical application.
- For extreme service conditions, kindly consult us.
| GASKET SHEET STYLE CODE | TENSILE STRENGTH | RESIDUAL STRESS | COMPRESSIBILITY | RECOVERY | IGNITION LOSS | RECOMMENDED SERVICE TEMPERATURE | RECOMMENDED MAX. PRESSURE |
|---|---|---|---|---|---|---|---|
| Champion Style AF110 Water | 7 N/mm2 | > 22 Mpa | 8-13% | >45% | <40% | 250 deg C | 35 bar |
| Champion Style AF120 GP | 10 N/mm2 | > 22 Mpa | 8-13% | >45% | <40% | 250 deg C | 50 bar |
| Champion Style AF120 Metallic | 10 N/mm2 | > 22 Mpa | 8-13% | >45% | <40% | 250 deg C | 50 bar |
| Champion Style AF139 Steam | 11.5 N/mm2 | > 22 Mpa | 8-13% | >45% | <40% | 300 deg C | 80 bar |
| High Pressata. AFI54 High Pressure | 15 N/mm2 | > 25 Mpa | 8-13% | >50% | <40% | 300 deg C | 100 bar |
| Champion Jointing Style AF154 Metallic | 15 N/mm2 | > 25 Mpa | 8-13% | >50% | <40% | 300 deg C | 100 bar |
| Champion Style AF159 Oil | 15 N/mm2 | > 25 Mpa | 8-13% | >50% | <40% | 300 deg C | 150 bar |
| Champion Jointing Style AF150 Acid | 10 N/mm2 | > 25 Mpa | 8-13% | >50% | <40% | 300 deg C | 100 bar |
| Champion Jointing Style AF190 Performance | 15 N/mm2 | > 25 Mpa | 8-13% | >50% | <40% | 300 deg C | 150 bar |
| Champion Jointing Style AF190 Metallic | 17 N/mm2 | > 25 Mpa | 8-13% | >50% | <40% | 350 deg C | 170 bar |
